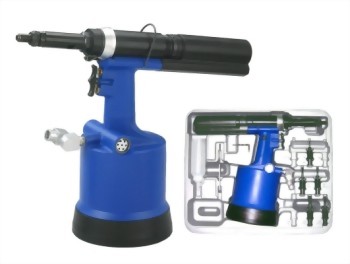

• Air Hydraulic Spin-Pull Tool

Model : TR-1009(A)

Q'ty :

Add To Inquiry

*Lightweight and ergonomically designed*Press lightly trigger for pulling and spinning out*Spin-on; pull-up; spin-out action*Can be suspended or hand-held*Air-hydraulic operation*Heavy duty plastic body*Quick change connector for tie rod*Bi-directional 360 rotation air hose universal joint*Precise powerful air motor efficient for forward andreverse work*Safety valve; automatically release the pressure when thepressure is over the set 110 psi to protect from theoperator and tool*There is the biggest stroke 16.5mm(0.65inch)

for setting standard spin pull tool M4~M12 in all materials
Rivet Nut Sizes: M4;M5;M6;M8;M10;M12 (TR-1009)
     5/16-18UNC;3/8-16UNC;1/2-13UNC (TR-1009A)
Stroke: 16.5mm (0.65inch)
Working Air Pressure: 90~95psi (6.3~6.5kg/cm2)
Pull Force(@90psi): 2722kg (6000lbs)
Tool Weight: 3.85kg
Height: 337 mm
Length of Placing Head: 415 mm
Base Diameter: 154.5 mm
