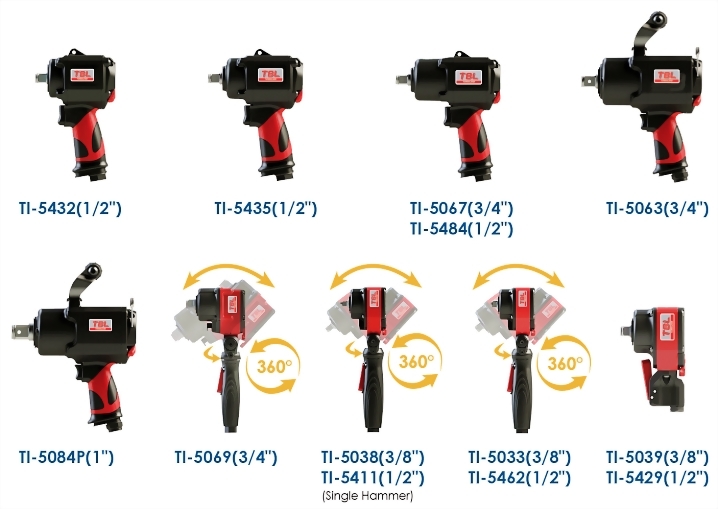

Full Range Two Chamber Hammer Mechanism Air Impact Wrench
|
Model No. |
Square |
Capacity |
Free |
Max |
Air |
Air |
Overall |
Avg. Air |
Net Weight |
|||||
|
Mm |
Inch |
Cfm |
L/Mln. |
Kgs |
Lbs |
|||||||||
|
inch |
mm |
(Rpm) |
Ft-Lb |
N-M |
||||||||||
|

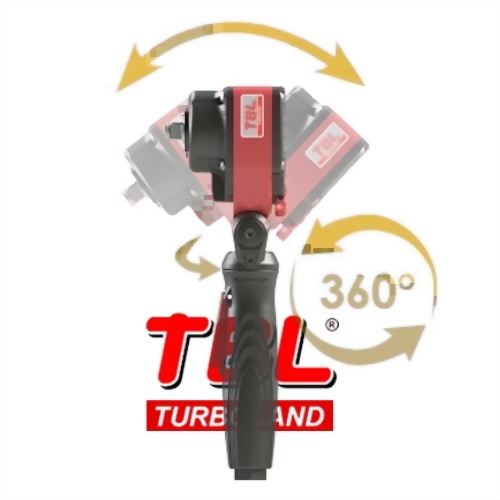

TI-5033 |
3/8" |
1/2" |
13 |
8,000 |
370 |
500 |
1/4" |
3/8" |
85 |
3- |
4 |
113 |
1.3 |
2.86 |
|
TI-5038 |
3/8" |
1/2" |
13 |
8,500 |
370 |
500 |
1/4" |
3/8" |
88 |
3- |
4 |
113 |
1.39 |
3.06 |
|
TI-5039 |
3/8" |
1/2" |
13 |
7,500 |
370 |
500 |
1/4" |
3/8" |
85 |
3- |
3.4 |
96 |
1.1 |
2.42 |
|
TI-5063 |
3/4" |
1-1/4" |
32 |
5,200 |
1,600 |
2,170 |
3/8" |
1/2" |
213 |
8- |
8.3 |
235 |
4.56 |
10 |
|
TI-5067 |
3/4" |
1" |
26 |
8,000 |
1,000 |
1,356 |
1/4" |
3/8" |
155 |
6- |
5.5 |
156 |
1.79 |
3.94 |
|
TI-5069 |
3/4" |
1" |
26 |
7,500 |
740 |
1,000 |
1/4" |
3/8" |
126.2 |
5" |
4 |
113 |
2.3 |
5.07 |
|
TI-5084P |
1" |
1-5/8" |
41 |
5,200 |
1,600 |
2,170 |
1/2" |
1/2" |
223 |
8- |
8.3 |
235 |
4.6 |
10.1 |
|
TI-5432 |
1/2" |
1/2" |
13 |
11,000 |
500 |
678 |
1/4" |
3/8" |
112 |
4- |
4.6 |
130 |
1.3 |
2.86 |
|
TI-5435 |
1/2" |
1/2" |
13 |
11,000 |
500 |
678 |
1/4" |
3/8" |
129 |
5- |
4.6 |
130 |
1.37 |
3.02 |
|
TI-5484 |
1/2" |
5/8" |
16 |
8,300 |
1,000 |
1,356 |
1/4" |
3/8" |
150 |
5- |
5.1 |
144 |
1.6 |
3.52 |

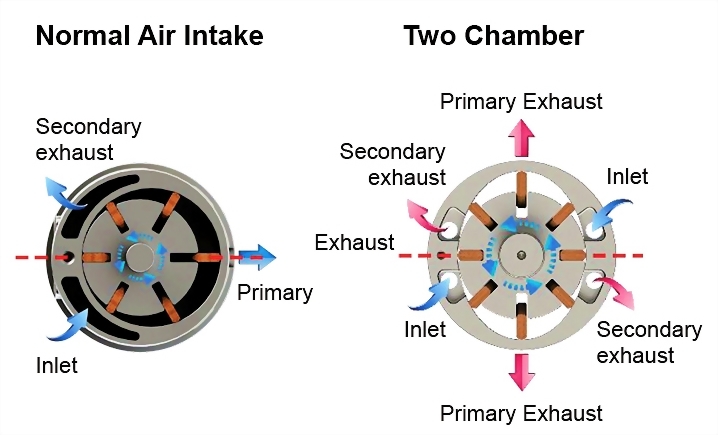

1. Two Chamber high performance motor system, Through increased air flow and innovative design delivers high torque in absoultely small machine, the work efficiency also increased 20-25% more.
2. Ergonomics confort handle with good balanced for performance.
3. Oil seal to prevent oil leakage on high performance of heat temperature.
4. Front and end rotor plate insert a thin steel plate to prevent wear away on performance.
5. Cold resisting take with -25°C for composite motor housing.
6. Specially processes and material of rotor blade to provide againest wear resistance & excellent lubrication.
7. Applications include heavy duty repair jobs or trucks, buses, off-road equipment or any where you need extra and compact size.
