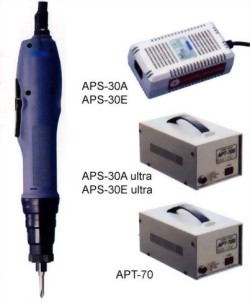

• ESD TYPE FULL AUTO SHUT-OFF PUSH TO START TYPE D.C MOTOR DRIVING ELECTRIC SCREWDRIVER

Model : ET-7000PS/ESD

Q'ty :

Add To Inquiry

*High accuracy and wide large torque range. *Low DC voltage motor enable safe and smooth operation. *Easy carton brush replacement. *Design in block assembly to easy maintains on line by user. *Design in comformity EMC standards.

Specification:
Power Source:----------30VDC
Free Speed:---------------1;000 Rpm
Torque Accuracy:------3%
Torque Setting:----------Stepless
Torque Range:-----------7.0-20.0 Kgf-Cm(6.1-17.4In-Lbf)
Net Weight:----------------740g (1.6 Lbs)
Overall Length:----------269mm (10.6")
Bit Shank:------------------1/4"
Tool Diameter:------------39mm/1.54"
Available Screw:---------Machine Screw:3.0-4.0mm/0.12"-0.16"
:---------Tapping Screw:2.6-3.5mm/0.1"-0.14"
