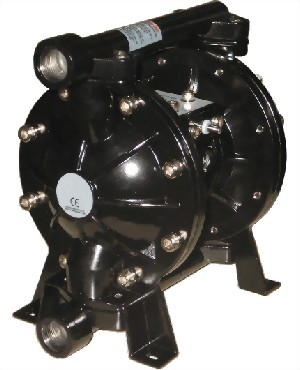

3/4" DOUBLE DIAPHERAGM PUMP

SPECIFICATION:
MAX. PRESSURE:7 BAR
FLUID INLET/OUTLET:3/4"-3/4"
AIR INLET:1/4"
STARTING PRESSURE:1.6 BAR
MAX. FLOW RATE:56 LPM
FREE SPEED:400 CPM
FLOW OF EACH CYCLE:0.15L
AIR CONSUMPTION:380 NL/MIN.
MAX. SIZE SOLD:3.0 MM
NET WEIGHT:5.0 KGS
SUCTION LIFT CAPABILITY:6.4M (PRIMED); 3.7M (DRY)
DIAMETION(LXWXH):26X20X30 MM
